HEINZMANN REGULATEURS EUROPA

Advanced systems for engines, turbines, and tomorrow

HEINZMANN Regulateurs Europa monitoring and surveillance systems can be as simple or complex as the application demands. From simple LED and LCD displays to comprehensive touch screen-based systems and ship wide monitoring. It is normal HEINZMANN Regulateurs Europa practice to keep monitoring and safety as separate functions to avoid common mode failures that could endanger the machinery. Whilst most applications require digital and/or screen-based monitoring displays HEINZMANN Regulateurs Europa can offer a range of solutions including direct reading local engine panels.

Marine Monitoring Systems

Engine Monitoring

Engine Parameters

Gearbox Monitoring

Oil Splash

Marine Monitoring Systems

It is normal HEINZMANN RE practice to keep monitoring and safety as separate functions to avoid common mode failures that could endanger the machinery.

Engine & gearbox monitoring and alarm systems can operate between bridge, engine control room and engine room and are designed to meet marine classification.

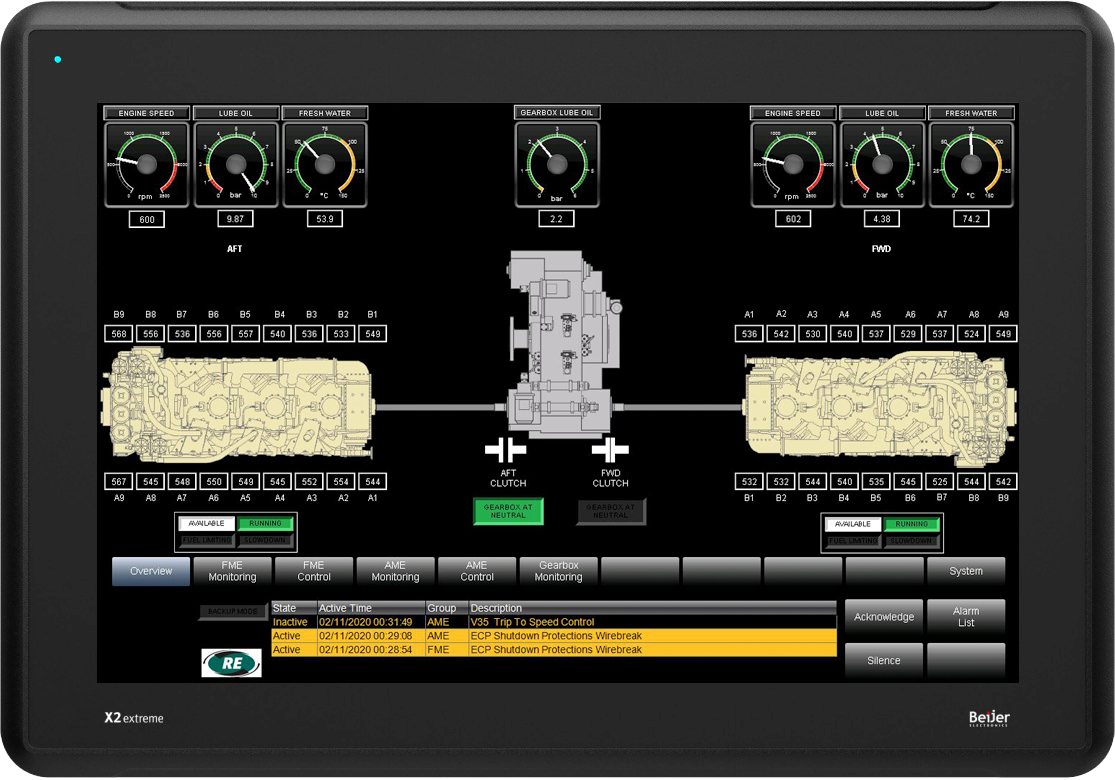

Engine Monitoring

Screens are custom designed to meet each application, taking data from on engine mounted sensors or via the Viking35. As alarms are triggered they are recorded & highlighted on a list at the base of each screen pending acknowledgement.

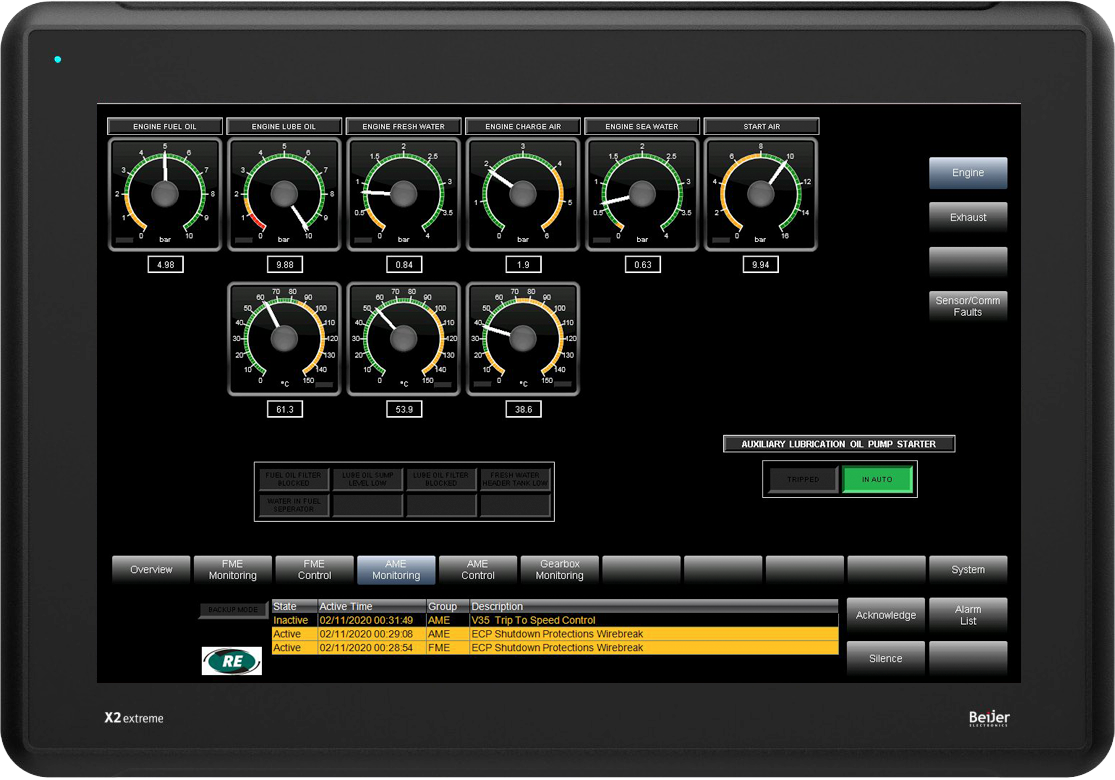

Engine Parameters

All key engine parameters are monitored and shown with their respective alarm levels. Analogue /bar charts can both be used.

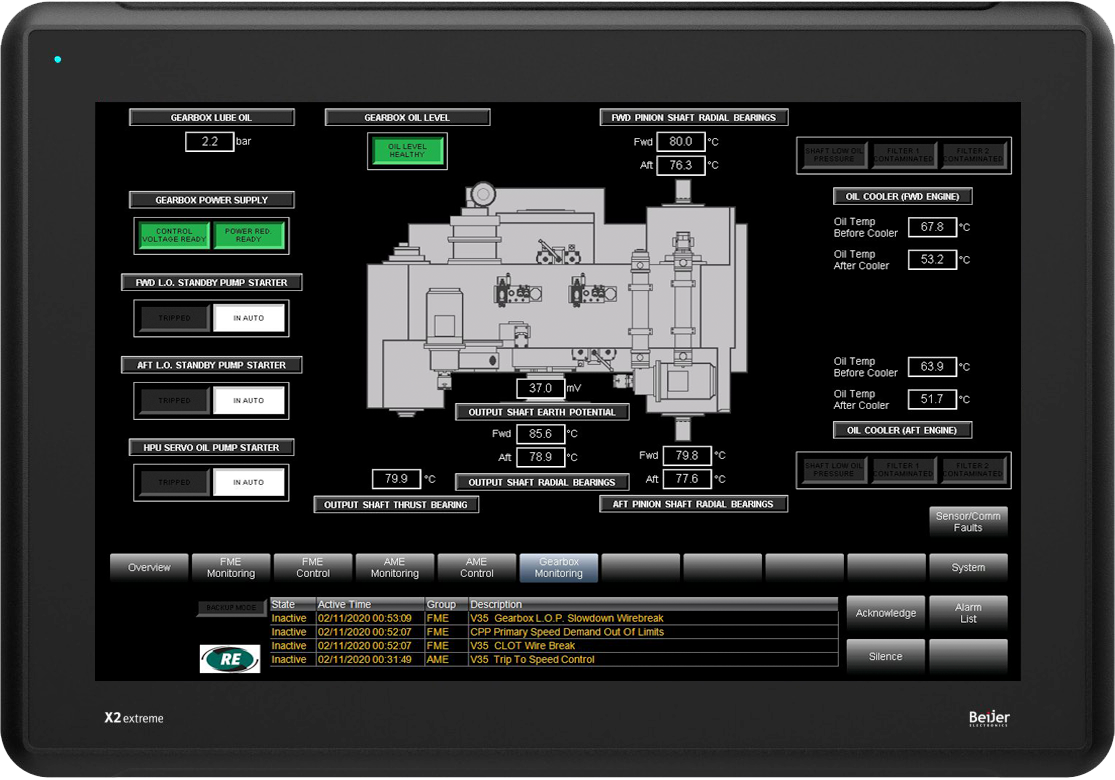

Gearbox Monitoring

Gearbox status and key parameters are monitored/alarmed in accordance with manufacturer’s recommendation. As alarms are triggered they are recorded & highlighted on a list at the base of each screen pending acknowledgement.

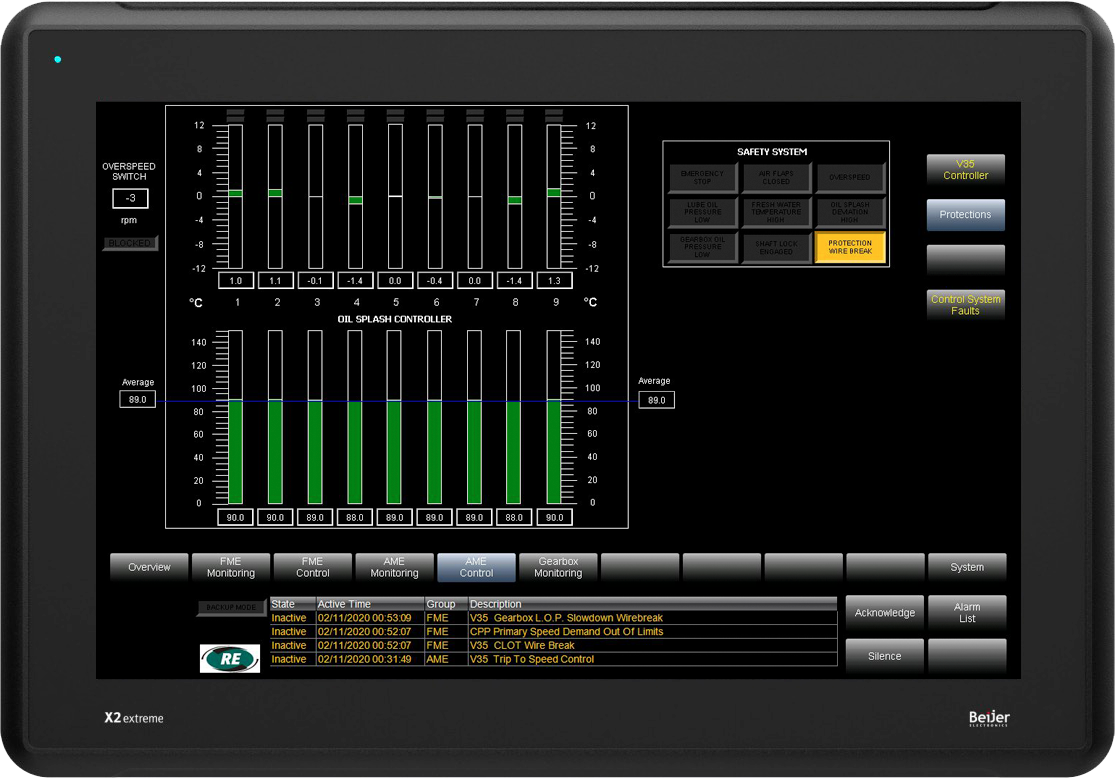

Oil Splash

Independent monitoring/alarming of engine oil splash temperatures may be included as an engine protection where the hardware is installed inside the crankcase.
